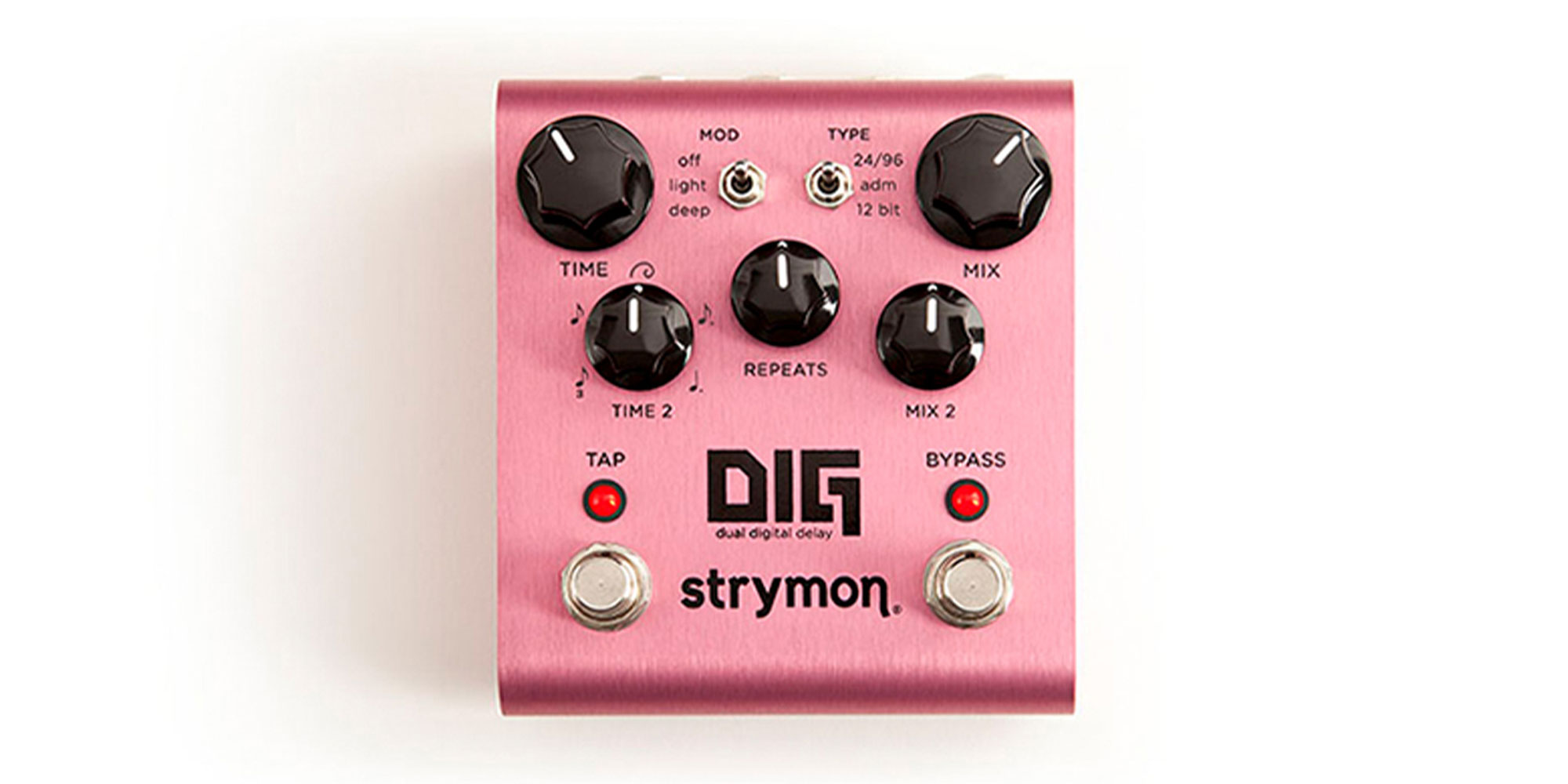

DIG unearths the true soul of digital delay and doubles it—two simultaneous, integrated delays with the captivating rack delay voicings from the 1980s and today, for incredible expressive potential.
Effortlessly create your own world of intricate and synchronized echoes, along with hypnotic and atmospheric repeats that blur the line between delay and reverb. Stretch your sonic horizons with five musically satisfying rhythmic subdivisions and three dual delay routing options. Go from syncopated, pulsating delay patterns, to evocative, spaced-out echo trails all in a compact, pedalboard-friendly format.
€349,00
• Two simultaneous, integrated delays with captivating rack delay voicings from the 1980s and today, for incredible expressive potential
• Five controls: Time, Time 2, Mix, Mix 2, Repeats
• Five “hidden” controls: Delay 1 Subdivision, Sync/Free Mode, Filter, Config, Delay 2 Repeats
• Three Delay voicing: 24/96, adm, 12 bit
• Five different delay subdivisions: Triplet, Eighth, Golden Ratio, Dotted Eighth, Dotted Quarter
• Delay range from 20ms to 1.6s (40ms – 3.2s with Half Note Delay 1 subdivision)
• Three levels of delay line modulation: Off, Light, Deep
• Free Mode to independently dial in your desired delay time
• Three routing options: Series with Delay 2 feeding into Delay 1. Parallel with Delay 1 in the left channel and Delay 2 in the right channel. Ping Pong, each delay acts as a ping pong delay, interacting together when both Mix knobs are turned up
• Holding down the TAP footswitch enables circular repeats
• High impedance mono input (internal jumper enables selectable TRS stereo input)
• Stereo output
• Expression pedal input with selectable control over any knob parameter. Connect an optional miniswitch to save a favorite preset
• Tap Tempo and Bypass footswitches
• 20Hz to 20kHz frequency response
• 32-bit floating point processing
• +8dBu maximum input level easily handles instrument and line signals
• Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters
• 115dB typical signal to noise
• Analog dry path for a zero latency dry signal that is never converted to digital
• Premium analog front end and output section
• Super high performance SHARC DSP in a compact form factor
• True Bypass (electromechanical relay switching)
• Selectable Trails Mode with high quality, transparent Analog Buffered Bypass
• 9V center negative DC supply included, 250mA current draw
• Strong and lightweight gunmetal gray anodized aluminum chassis
• Crafted with love in the USA
• Dimensions: 11,4 x 10,2 x 4,4 cm
• Designed and built in the USA
